LED dimmer VD200, 1-200W. With staircase function. Leading/trailing edge, Vadsbo
  • LED dimmer VD200, 1-200W. With staircase function. Leading/trailing edge, Vadsbo
  • LED dimmer VD200, 1-200W. With staircase function. Leading/trailing edge, Vadsbo
  • LED dimmer VD200, 1-200W. With staircase function. Leading/trailing edge, Vadsbo
  • LED dimmer VD200, 1-200W. With staircase function. Leading/trailing edge, Vadsbo

LED dimmer VD300, 1-300W. With staircase function. Leading/trailing edge, Vadsbo

£39.80

£39.80 VAT excluded

Quantity
in-stock

- Starts at 1W!
- Trailing Edge/Leading Edge Dimmer.
- Factory setting - trailing edge dimmer

- Suitable for round wall box.
- Load up to 300W.
- Dimming function: rotation.

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

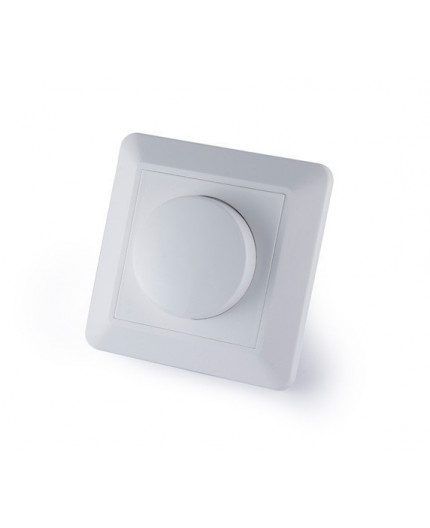

LED dimmer VD300

Part number: V-4030020L
Power: 1-300W
Input voltage: 220-240V
Input current: 1.3A
Function: Controlled leading- or trailing edge signal, can be selected with jumper
- dimming function: Rotation
- ON/OFF: Push, primary switched
Operating temperature: -20 to +40°C
Tc max: +75°C
Dimensions (LxWxH): 84x84x45 mm
Weight: 90 g
Colour: White
Housing: PCB housing
- material: PBT
- flame class: V-0
Frame/knob: PC
- material: V-0
- flame class
Plate: Aluminum
- material: V-0
- flame class
Connection: Screw clamp (max. 2,5mm²) screw terminal
Protection: Yes
- transients
- overload: Yes
- overheating: Yes, 115°C automatic reset
- short circuit: Yes, automatic reset after removal of fault
For dimming of: Yes
- incandescent:Yes
- 230V halogen: Yes
- dimmable LED driver and GU10 LED light: Yes
- electronic transformer: Yes

Staircase function: Yes (ON/OFF can be controlled by separate push-button switches)
Isolation class: II
Degree of protection: IP20
Frame set compability: Busch Jaeger, GIRA
Softstart: No
Working humidity: <95% RH non-condensing
Manufacturing standard: EN 55015/A2: 2009; EN 61547:2009: EN 61000-3-2/A2:2009: EN 61000-3-3:2008; EN 60669-2-1/A12:2010; EN 60669-1:A2:2008
Approvals; CE



NOTE: Do not use the LED-dimmer for fluorescent lamps, fans or toroidal cores. The installation must only be performed by a competent electrician.

V-40V0300-001
5 Items

Data sheet

Dimming Control
Push ON/OFF - Rotary
Brand
Vadsbo
Method of dimming
Trailing/Leading edge
Rotary dimmer
1-gang

Download

installation

Download (439.22k)

data sheet

Download (192.84k)
