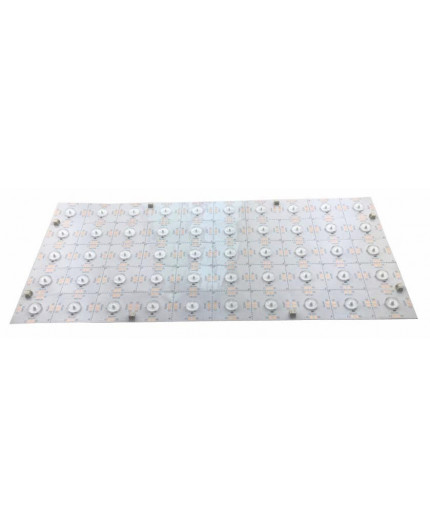

1-LED-Cut SMD2835 160 Degree Flexible Soft LED Module / Panel, 24Vdc, 36W, 6000K, CRI90, 480mmx240mm

1-LED-Cut SMD2835 160 Degree Flexible Soft LED Module / Panel, 24Vdc, 36W, 6000K, CRI90, 480mmx240mm

£52.00

£52.00 VAT excluded

Volume discounts

Quantity Discount You Save
50 3% Up to £78.00
100 4% Up to £208.00
200 5% Up to £520.00
Quantity
2-3weeks

24VDC SMD2835 160 Degree Flexible Soft LED Board / Panel, 36W, 6000K.
Perfect for lighting box.



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

SMD2835 160 Degree Soft LED Board for lighting box.
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Size of module: 480mm x 240mm
Quantity of LEDs: 50pcs
Power: 36W
CCT: 6000K ± 150K (cool white)
Brightness: approx. 3300lm/m
CRI(Ra)≥90
Beam angle: 160degree
Degree of protection: IP20 (non-waterproof)
PCB: 480mm x 240mm white PCB
Operation temperature: -20℃-+45℃
Dimming: yes (if connected to suitable dimmable LED power supply)

ML-M2/36-60
100 Items

Data sheet

Light colour
Cool white
Colour temperature (CCT)
6000K
Ingress Protection (IP)
IP20 (non-waterproof)
Features
Single Colour
Wattage
36W
Input voltage
24VDC
CRI
≥90
Version
Constant Voltage (CV)
LED chip
SMD2835
Lens
Yes
