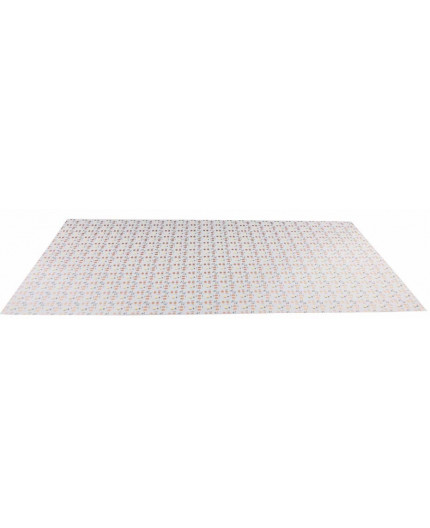

1-LED-Cut CRI≥95 Flexible Back Light Module / Panel, SMD2835, 24Vdc, 60W,  4000K, 480mmx240mm
  • 1-LED-Cut CRI≥95 Soft Back Light Module, SMD2835, 24Vdc, 60W,  2700K, 480mmx240mm
  • 1-LED-Cut CRI≥95 Soft Back Light Module, SMD2835, 24Vdc, 60W,  2700K, 480mmx240mm
  • 1-LED-Cut CRI≥95 Soft Back Light Module, SMD2835, 24Vdc, 60W,  2700K, 480mmx240mm

1-LED-Cut CRI≥95 Flexible Back Light Module / Panel, SMD2835, 24Vdc, 60W, 4000K, 480mmx240mm

£48.00

£48.00 VAT excluded

Volume discounts

Quantity Discount You Save
10 1% Up to £4.80
20 2% Up to £19.20
50 3% Up to £72.00
100 4% Up to £192.00
200 5% Up to £480.00
Quantity
2-3weeks

24VDC SMD2835 1-LED-Cut CRI≥95 Flexible Back Light Module / Panel, 60W, 4000K.
Perfect for lighting box.



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

SMD2835 1-LED-Cut CRI≥95 Flexible Back Light Module for lighting box.
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Size of module: 480mm x 240mm
Quantity of LEDs: 288pcs
Power: 60W
CCT: 4000K ± 150K (natrual white)
Brightness: approx. 6200lm/m
CRI(Ra)≥95
Beam angle: 120degree
Degree of protection: IP20 (non-waterproof)
PCB: 480mm x 240mm white PCB
Operation temperature: -20℃-+45℃
Dimming: yes (if connected to suitable dimmable LED power supply)

ML-M3/60-40
100 Items

Data sheet

Light colour
Daylight
Colour temperature (CCT)
4000K
Ingress Protection (IP)
IP20 (non-waterproof)
Features
Single Colour
Wattage
60W
Input voltage
24VDC
CRI
≥95
Version
Constant Voltage (CV)
LED chip
SMD2835
Lens
No
