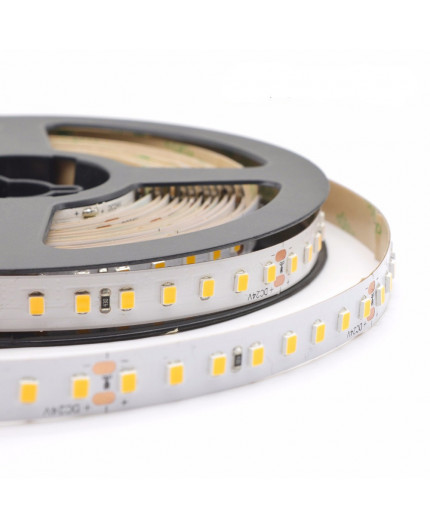

24VDC High Efficiency 180lm/m constant current LED tape 4000K SMD2835, IP20, 5m a reel (110W, 640LEDs)
Temperature Sensor Constant Current LED Strip from PREMIUM range.
Constant current version: with stable current, suitable for high-quality requirements project.
With constant current IC for each segment: NO need of a constant current driver.
DC24V input: can work with any DC24V PWM control system or dimmer such as RF, 0-10V, DALI, DMX512, etc.
Can work with unstable power supply and without damage.
With a temperature sensor: can lower the current to protect itself when the temperature is too high.
Brightness uniform: with the same brightness from the first end to the last end
DC24V version: can work with DC21V to DC30V input (the same current)
The voltage drop will not affect the brightness uniform of LED strips (DC21V-DC30V input)
The constant current LED strip is cuttable like the constant voltage LED strip
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Quantity/m: 128 LEDs per meter
CCT: 4000K (natural white)
Brightness: approx. 180lm/m
Beam angle: 120degree
Total length (reel): 5m (110W, 640LEDs)
Degree of protection: IP20 (non-waterproof)
PCB: 12mm wide white PCB
Inst.: 12mm wide self-adhesive 3M tape backing
Cutting points: at 8 LED (62.5mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Dimming: yes (depending on dimming method: main trailing/leading edge or 0-10V or DALI, etc.)
