• New
12VDC LED tape, blue, 9.6W/m, 120LED/m, 5m (48W 600 LED), IP20, SMD3528

12VDC LED tape, blue, 9.6W/m, 120LED/m, 5m (48W 600 LED), IP20, SMD3528

£37.00

£37.00 VAT excluded

Volume discounts

Quantity Discount You Save
10 1% Up to £3.70
20 2% Up to £14.80
50 3% Up to £55.50
100 4% Up to £148.00
200 5% Up to £370.00
Quantity

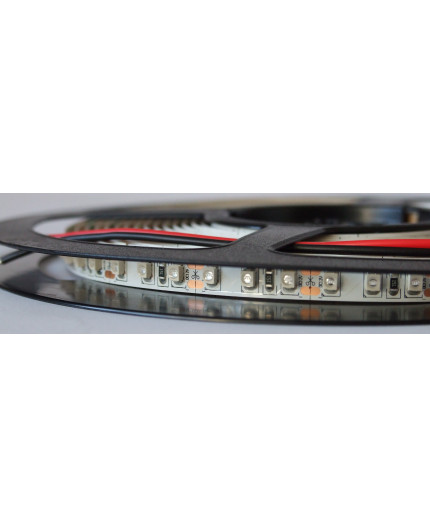

12VDC LED tape,  BLUE colour, 120 LED/m, 9.6 W/m, 8mm white PCB, IP20, length: 5m (48W, 600LEDs), with connection wires at both ends, SMD3528



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

12VDC LED tape, blue, 9.6W/m, 120LED/m, 5m (48W, 600 LED), IP20, SMD3528

LED chip: SMD3528
Input voltage: 12VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 120
Power: 9.6W/m
Colour temperature BLUE
Brightness: approx. 288lm/m
Beam angle: 120 degree
CRI(Ra)≥80
Energy Efficiency Rating: A+
Degree of protection: IP20 (non-waterproof)
Width of PCB: 8mm (5mm)
Installation: 8mm (5mm) wide self-adhesive 3M tape backing
Cutting points: at 3 LED (25mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Packing (total length): 5m (48W, 600LEDs)
Dimming: yes (if the LED tape is connected to the suitable dimmable LED power supply, additional dimmer switch required)

Note:
Adopt a suitable LED power supply to match the LED tapes.
The power of the LED power supply should be 20% bigger than the max power of LED tapes in order to ensure the long-time performance of the LED power supply.

ML-F3528A60-B-12
5 Items

Data sheet

Light colour
Blue
LED quantity
120LEDs/m
Ingress Protection (IP)
IP20 (non-waterproof)
PCB width
8mm
Length
5.0m / 5000mm
Watts per metre
9.6W/m
Features
Single Colour
Input voltage
24VDC
CRI
≥80
Version
Constant Voltage (CV)
LED chip
SMD3528
Cut length
25mm
Lumens per metre
0 - 499 lm/m
Beam angle
120 degree
