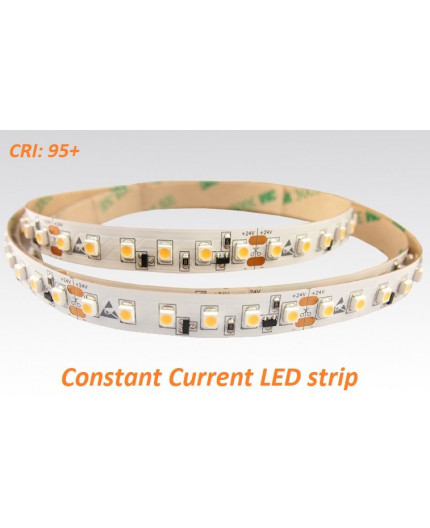

Temperature Sensor Constant Current LED Strip from PREMIUM range.
Constant current version: with stable current, suitable for high-quality requirements project.
With constant current IC for each segment: NO need of constant current driver.
DC24V input: can work with any DC24V PWM control system or dimmer such as RF, 0-10V, DALI, DMX512, etc.
Can work with unstable power supply and without damage.
With a temperature sensor: can lower the current to protect itself when the temperature is too high.
Brightness uniform: with same brightness from the first end to the last end
DC24V version: can work with DC21V to DC30V input (the same current)
The voltage drop will not affect the brightness uniform of LED strips (DC21V-DC30V input)
The constant current LED strip is cuttable like the constant voltage LED strip
LED: CRI≥80 SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage (not included)
Quantity/m: 120 LEDs per meter
Brightness: approx. 840lm/m
Beam angle: 120degree
Total length (roll): 15m (144W, 1800LEDs)
Degree of protection: IP20 (non-waterproof)
PCB: 10mm wide white PCB
Inst.: 10mm wide self-adhesive 3M tape backing
Cutting points: at 6 LED (50mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Dimming: yes (depending on dimming method: main trailing/leading edge or 0-10V or DALI, etc.)
Note: We supply this LED strip in standard 5m rolls. If you need continuous length 10m, please send an inquiry: email@example.com (min. 10rolls)
Adopt a suitable power supply to match the LED strips. Power of LED power supply should be 20% bigger than the max power of LED strips in order to ensure the long-time performance of power supply.
