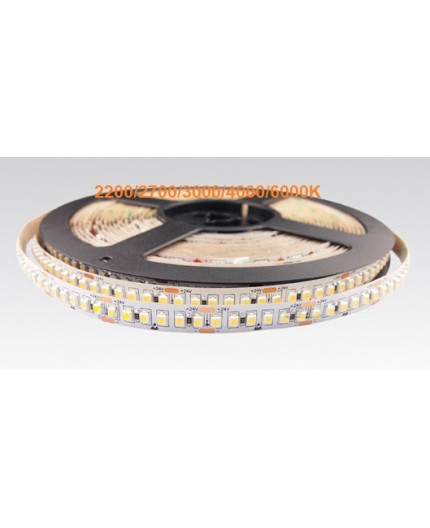

24VDC LED strip SMD3528 180LEDs/m 14.4W/m 3000K, IP20, 5m  (72W, 900LEDs)

24VDC LED strip SMD3528 180LEDs/m 14.4W/m 3000K, IP20, 5m (72W, 900LEDs)

£50.00

£50.00 VAT excluded

Volume discounts

Quantity Discount You Save
10 1% Up to £5.00
20 2% Up to £20.00
50 3% Up to £75.00
100 4% Up to £200.00
200 5% Up to £500.00
Quantity
approx. 2weeks

24VDC LED Strip, 3000K, SMD3528, 180 LEDs/m, 14.4W/m, IP20, length: 5m (72W, 900LEDs), white PCB (10mm), 1100lm/m, with connection wires at both ends

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

LED Strip SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Quantity/m: 180 LEDs per meter
Power: 14.4W/m
CCT: 3000K (warm white)
Brightness: approx. 1200lm/m
Beam angle: 120degree
Total length (roll): 5m (72W, 900LEDs)
Degree of protection: IP20 (non-waterproof)
PCB: 10mm wide white PCB
Inst.: 10mm wide self-adhesive 3M tape backing
Cutting points: at 6 LED (33.3mm) intervals
Connections: with approx. 200mm connection wires at both ends
Ambient operation temperature: -20℃-+45℃
Warranty: 3 years
Dimming: yes if this LED strip is connected to a suitable dimmable LED power supply (depending on the method of dimming system)

ML-F3528A90-W-24
200 Items

Data sheet

Light colour
Warm white
LED quantity
180LEDs/m
Colour temperature (CCT)
2800K-3200K
Ingress Protection (IP)
IP20 (non-waterproof)
PCB width
10mm
Length
5.0m / 5000mm
Watts per metre
14.4W/m
Input voltage
24VDC
CRI
≥80
Version
Constant Voltage (CV)
LED chip
SMD3528

Download

LED Strip PREMIUM-3528-900-CRI80

LED Strip PREMIUM-3528-900-CRI80

Download (551.8k)
