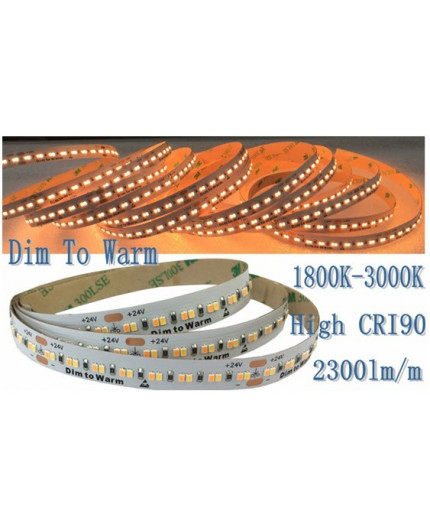

24VDC DIM to WARM LED Strip, 3000K-1800K, CRI90+, SMD2835, IP20, 5m (130W, 960LEDs)

£62.50

£62.50 VAT excluded

Quantity

24VDC IP20 LED Strip SMD2835, 3000K-1800K, 192 LEDs/m, 26W/m, total length: 5m a roll (130W, 960LEDs), 2300lm/m, with connection wires at both ends

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Type of LEDs: Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Quantity/m: 192 LEDs per meter
Power: 26W/m
CCT: 1800K-3000K
Brightness: approx. 2300lm/m
Beam angle: 120degree
Total length (roll): 5m (130W, 960LEDs)
Degree of protection: IP20
PCB: 10mm wide white PCB
Inst.: 10mm wide self-adhesive 3M tape backing
Cutting points: at 8x2 LED (416.66mm) intervals
Connections: with approx. 300mm connection wires at both ends
Operation temperature: -20
-+45
Warranty:
 3 years
Dimming:
 yes (main dimming (triac), DALI, 0/1-10V)) - requires dimmable LED driver with ANALOG OUTPUT.

Note: when dim, the brightness will be changing and in the same time, the CCT will be getting warmer (from 3000K to 1800K).

It works with HLG-150H-24B (1-10V) from Mean Well.

ML-28352454-40
5 Items

Data sheet

Light colour
Warm white
Ingress Protection (IP)
IP20 (non-waterproof)
PCB width
10mm
Length
5.0m / 5000mm
Power
26W/m
Features
DIM TO WARM
Input voltage
24Vdc
CRI
≥90
Version
Constant Voltage (CV)
LED chip
SMD2835
