E2 Single Zone PWM Touch Panel CCT Controller

£29.00

£29.00 VAT excluded

Quantity

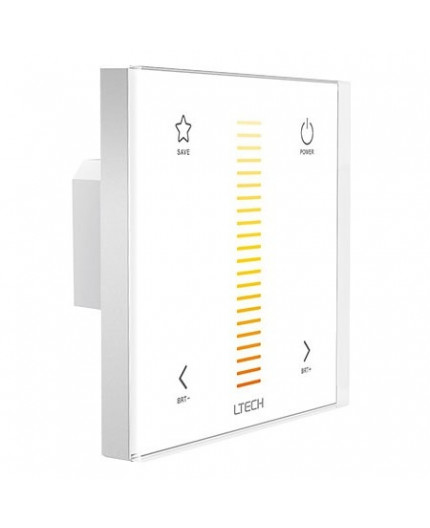

Wall mounted touch panel CCT controller, suitable for controlling one zone of lighting.

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

The touch panel requires a low voltage input. Input and output is via screw terminals on the back of the unit. Features include an on/off button, the ability to save and recall a light level, a touch sensitive CCT bar and brightness/dimming buttons.

Compatible with standard UK and European wall switches. Back boxes must be at least 26mm deep, back box is not included.

The touch panel dimmer operates on a low voltage 12~24V DC circuit, providing a PWM output, ideal for dimming LED's.

Product Features:
- 2 in 1 function: RF wireless control and PWM power output.
- Power output, lamps can be connected directly, easy and convenient.
- Touch keys with chord and LED indicator.
- Save any scene you like, touch 1 key to recall scene, easy and convenient.
- Adopts capacitive touch control technology on the full color slider, makes LED dimming selection more user-friendly
- Touch panel can be controlled by remote directly or smart phone if add a gateway

Technical Specification:
Input Voltage: 12-24V c
Current Load: Max. 8A
Output Power: 0~96W...192W
Wireless frequency: RF 2.4GHz
Working Temp.: -30℃~55℃
Dimensions: L86×W86×H36(mm)
Package Size: L113×W112×H50(mm)
Weight(G.W.): 225g

ML-E2
100 Items

Data sheet

Light colour
Dual White
Features
CCT adjustable
Output
12Vdc
Output
24Vdc

Download

datasheet

Download (5.39M)

certificate

Download (95.01k)
