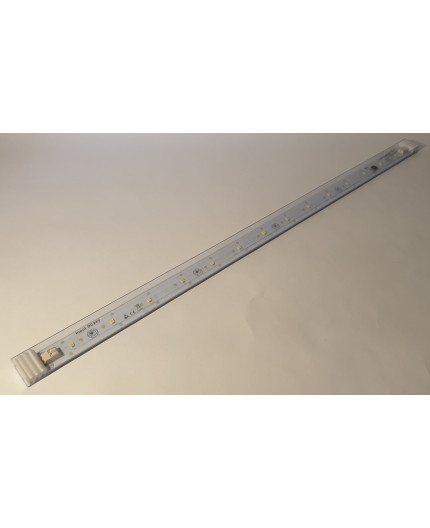

120 Degree SMD2835 Light Bar, CRI(Ra)≥90, 24Vdc, 14.4W, 500mmx20mm, 6000K, CC (constant current version)

£14.50

£14.50 VAT excluded

Quantity
2-3weeks

24VDC 14.4W 0.5m SMD2835 LED light bar (back light), 6000K, constant current version with temperature sensors.

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

SMD2835 LED light bar (backlight) with temperature sensor.
- Constant current version: with stable current, suitable for high quality requirements project.
- DC24V input: Can work with any DC24V PWM control system.
Can work with unstable power supply and without damage.
- with temperature Sensor: Can lower the current to protect itself when the temperature is too high.
- Brightness uniform: With same brightness from the first end to the last end.
- DC24V version: can work with DC20V to DC30V Input


Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Size of module: 500mm x 20mm
Quantity of LEDs: 14pcs
Power: 14.4W
CCT: 6000K ± 150K
Brightness: approx. 1200lm/m
CRI(Ra)≥90

Beam angle: 120degree (no lens)
Degree of protection: IP20 (non-waterproof)
PCB: 500mm x 20mm white PCB
Inst.: 4 mounting holes per one piece
Connections: 1 connector per one module (included)
                    up to 10 bars can be connected together
Operation temperature: -20℃-+45℃
Dimming: yes (if connected to dimmable LED power supply)

ML-B2/14-60
100 Items

Data sheet

Colour temperature (CCT)
6000K-6500K
Light colour
Daylight
Ingress Protection (IP)
IP20 (non-waterproof)
Input voltage
24Vdc
CRI
≥90
Version
Constant Current (CC)
