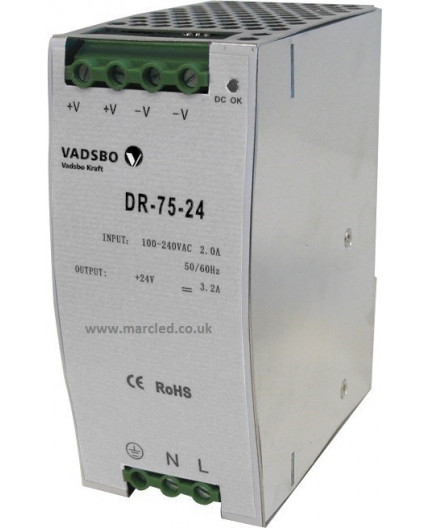

75W 24VDC DR75/24 Switching Power Supply for DIN Rail Mounting, Vadsbo
  • 75W 24VDC DR75/24 Switching Power Supply for DIN Rail Mounting, Vadsbo

75W 24VDC DR75/24 Switching Power Supply for DIN Rail Mounting, Vadsbo

£43.99
VAT included

£36.66 VAT excluded

Quantity
in-stock

75W 24VDC Switching Power Supply for DIN Rail Mounting.
Built-in protection against short circuiting, overload, over-voltage with automatic reset when error is corrected.
The input voltage: 100-240VAC.
Self-cooled.

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Part Number: DR75/24
Protection against:
-short circuit
-overload
-overvoltage
-automatic return
Cooling: natural
Mounting: DIN rail TS-35/7.5 & TS-35/15
Insulation class:II
LED indicator of power supply
Standard: EN 55, 61, 50, 60, UL60950
Input voltage: 100-240VAC
Output voltage: 24VDC
Voltage tolerance: +-1%
Rated current: 3.2A
RAted power: 75W
Max ripple: 150 mV p-p
DC adjustment: +-10%
Efficiency: 80%
Overload capacity: 5%
Insulation level: 3kVAC
Working temp.: -10*C-+45*C
Dimensions(without DIN mount): 56x126x100mm
Weight: 540g
Modules: 3

Application
Obvious areas include all types of operating equipment.
DR power supplies also specially suitable to drive LED stripes. To dim stripes, use Vadsbo's LED dimmer PWM360A (V-4036020PWMA).

DR75/24
1000 Items

Data sheet

Ingress Protection (IP)
IP20 (non-waterproof)
Type
Constant Voltage
Output
24Vdc
Wattage
50-99W
Dimming Control
Switching only
Design
DIN Rail
