0 - 40W 12Vdc Constant Voltage Dimmable LED Driver TE40W-DIMM-LED-IP64
  • 0 - 40W 12Vdc Constant Voltage Dimmable LED Driver TE40W-DIMM-LED-IP64
  • 0 - 40W 12Vdc Constant Voltage Dimmable LED Driver TE40W-DIMM-LED-IP64
  • 0 - 40W 12Vdc Constant Voltage Dimmable LED Driver TE40W-DIMM-LED-IP64
  • 0 - 40W 12Vdc Constant Voltage Dimmable LED Driver TE40W-DIMM-LED-IP64

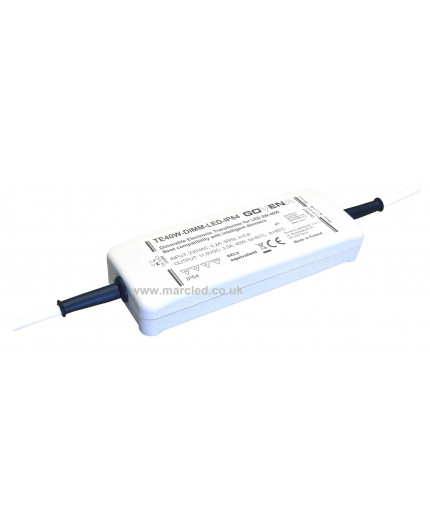

0 - 40W 12Vdc Dimmable (trailing edge) Electronic Transformer for LEDs, TE40W-DIMM-LED-IP64

£24.96
VAT included

£20.80 VAT excluded

Quantity

- For best compatibility use intelligent dimmers (trailing edge)
- Constant Voltage Design
- Protections: Short circuit/ Over voltage/Over temperature
- Cooling by free air convection
- IP64 design
- Delivering up to 40W of power
- Suitable for 12VDC LED lighting

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

- For best compatibility use intelligent dimmers
- Constant Voltage Design
- Protections: Short circuit/ Over voltage/Over temperature
- Cooling by free air convection
- IP64 design
- Delivering up to 40W of power
- Suitable for 12VDC LED lighting

Input voltage: 230 V AC +/-10%, 50Hz
Input current: ≤ 0,2 A
Power factor: >0,9
Output voltage: 11,5 VDC +/- 10%
Rated power: 40 W
Power range: 0 – 40 W
Nominal output current: ≤ 3,5 A
Output current range: 0 – 3,5 A
Efficiency: 86% at Pn
Protection degree: IP64
Ambient temperature ta: max. 40 ºC
Case temperature tc: max. 85 ºC
Input wires: 2x1,0 mm2 (200mm)
Output wires: 2x1,0 mm2 (200mm)


Cooperation with light dimmers:
TE40W-DIMM-LED-IP64 can by used for the adjustment of the LED light intensity by applying light dimmer.
For best compatibility use intelligent transistor dimmers which cut off the mains voltage towards the end of sine wave (trailing edge dimmers).





TE40W-DIMM-LED-IP64
92 Items

Data sheet

Ingress Protection (IP)
IP64
Type
Constant Voltage
Output
12Vdc
Wattage
30-49W
Dimming Control
Trailing / Leading edge
Design
Plastic case
