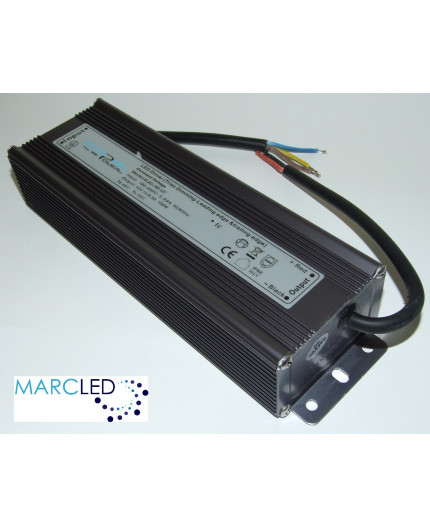

100W, ELED-100-12T, Mains to 12Vdc Triac dimmable LED driver, IP66
  • 100W, ELED-100-12T, Mains to 12Vdc Triac dimmable LED driver, IP66

100W, ELED-100-12T, Mains to 12Vdc Triac dimmable LED driver, IP66

£71.40
VAT included

£59.50 VAT excluded

Quantity
in-stock

- Triac dimmable (dimmable with leading edge/trailing edge)
- Constant Voltage Design, 12Vdc
- IP66 design
- Suitable for LED lighting and moving sign applications

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Model: ELED-100-12T
Output DC voltage: 12V
Rated current: 8.3A
Voltage accuracy: ±0.5V
Rated power: 100W
Min. load: 10W
Input Voltage Range: 180-250VAC(90-130Vdc)
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF ≥ 0.6/220V
Full Load Efficiency(Typ.): 83%
AC Current(Typ.): 0.91A
Leakage current: <0.70mA/220V
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed.
Over load: ≤120%
Over curent: ≤1.4L out
Working TEMP.: -40~+60°C
Working Humidity: 20~99%RH,non-condensing
Storage TEMP.-40*C - +80*V
Humidity: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz,5G 10min./1 cycle, period for 60min.each along X,Y,Z axes.
Safety standards: EN60950-1, IP66
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 ( ≥ 50%load) EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN61547,A light industry level
Dimensions: 230*70*46mm(L*W*H)
Packing: 1.3Kg

NOTE: ELED-100-12T prefers leading edge dimmers

ELED-100-12T
95 Items

Data sheet

Ingress Protection (IP)
IP66
Type
Constant Voltage
Output
12Vdc
Wattage
100-199W
Dimming Control
Trailing / Leading edge
Design
Metal case
