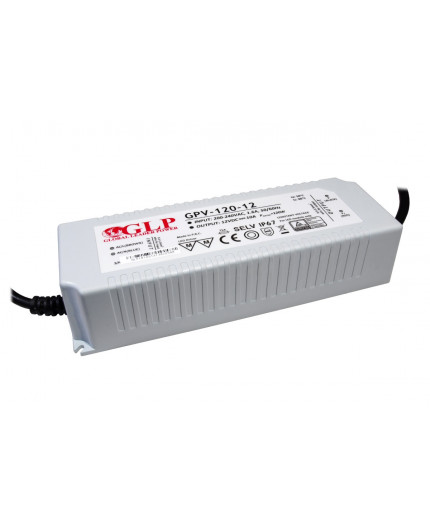

GPV-120-12, 120W 12Vdc Single Output Switching LED Power Supply, IP67, TÜV certificate

GPV-120-12, 120W 12Vdc Single Output Switching LED Power Supply, IP67, TÜV certificate

£29.00

£29.00 VAT excluded

Volume discounts

Quantity Discount You Save
10 1% Up to £2.90
20 2% Up to £11.60
50 3% Up to £43.50
100 4% Up to £116.00
200 5% Up to £290.00
Quantity

- Suitable for LED lighting
- Universal AC input
- Constant voltage design: 12Vdc
- Isolation class II
- Fully encapsulated with IP67 level



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Model: GPV-120-12

Output:
LED driver mode: constant voltage
Output Voltage: 12Vdc
No of outputs: 1
Rated current: 10A
Current range: 0-10A
Rated power: 120W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 200mVP-P
Setup, rise time: 500ms, 50ms / 230VAC at full load
Hold up time (typ.): 18ms / 230VAC at full load

Input:
Input Voltage: 90 ÷ 264VAC; 127 ÷ 370VDC
Frequency range: 47 ÷ 63Hz
Efficiency: 87%
AC current (typ.): 1.7A / 230VAC
Inrush current (typ.): 50A/ 230VAC
Leakage current(max.): <0.25mA / 240VAC
Protections:
Overcurrent:
- range:  110 ÷ 150% rated output current
- type: hiccup mode, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Over voltage:
- 13.5÷ 18V
- type: hiccup mode, auto-recovery
Over temperature:
- range: 140°C ± 10°C detect on main control IC
- type: shut-off, auto-recovery

Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 5G, 12min / cycle, period for 72min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliande to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2
TÜV certificate

Other:
Dimensions: 187 x 42 x 33mm (L x W x H)
Weight: 0.62kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67



GPV-120-12
5 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP67
Output
12VDC
Wattage
120W
Dimming Control
Non-dimmable
Design
Plastic case

Download

GPV-120-12/24

Download (970.82k)
