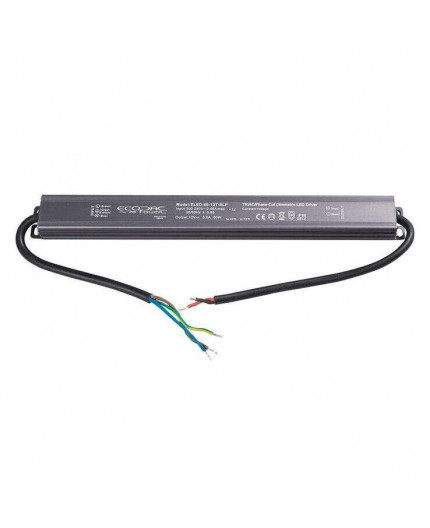

60W, ELED-60-24T-SLP, Mains to 24Vdc Triac dimmable LED driver, IP66

60W, ELED-60-24T-SLP, Mains to 24Vdc Triac dimmable LED driver, IP66

£52.00

£52.00 VAT excluded

Volume discounts

Quantity Discount You Save
10 1% Up to £5.20
20 2% Up to £20.80
50 3% Up to £78.00
100 4% Up to £208.00
200 5% Up to £520.00
Quantity
in-stock

60W Slim Constant Voltage Triac dimmable LED driver, ELED-60-24T-SLP for 24Vdc LED lights
- Constant Voltage Design, 24Vdc




You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Model: ELED-60-24T-SLP (slim)
Output DC voltage: 24V
Rated current: 2.5A
Voltage accuracy: ±0.5V
Rated power: 60W
Min. load: 6W
Input Voltage Range: 200-240VAC
Frequency Range: 47-63HZ
Inrush Current: 50A, 50% 210us@230VAC
Power Factor ( Typ.): PF ≥ 0.96/220V
Full Load Efficiency(Typ.): 85%
AC Current (Max.): 0.37A
Short Circuit: Shut down o/p voltage, re-power onto recover after fault condition is removed.
Over loading: ≤120%, constant current limiting, re-power onto recover
Over Temperature: 100°C ±10°C, re-power onto recover
Protection Class: I
Working TEMP.: -40~+60°C
Working Humidity: 20~95%RH,non-condensing
Storage TEMP.-40*C - +80*V
Humidity: 10-95% RH
Temperature Coefficient: ±0.03%/°C (0-50°C)
Vibration: 10~500Hz,5G 10min./1 cycle, period for 60min.each along X,Y,Z axes.
Safety standards: EN613471, EN61347-2-13, EN62493
Withstand voltage: I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2, EN61000-3-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,11, EN61547
IP Rating: IP66
Dimensions: 300*32*20mm (L*W*H)
Packing: 0.45Kg

NOTE: ELED-60-24T-SLP prefers leading edge dimmers

ELED-60-24T-SLP
100 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP66
Output
24VDC
Wattage
60W
Dimming Control
Trailing / Leading edge
Design
Slim/Thin
Design
Metal case

Download

ELED-60P-T-SL Series

ELED-60P-T-SL Series

Download (763.35k)
