• New

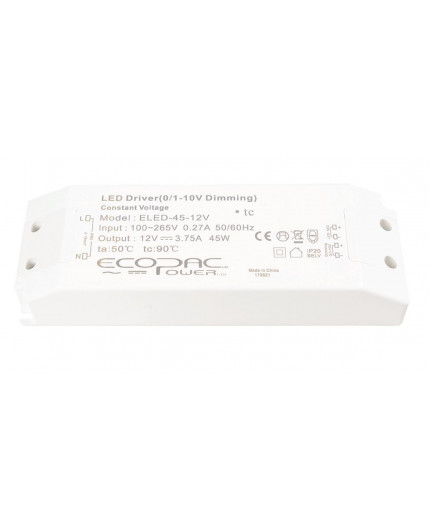

12Vdc, 45W, 0-10V dimmable LED driver ELED-45-12V

12Vdc, 45W, 0-10V dimmable LED driver ELED-45-12V

£27.00

£27.00 VAT excluded

Volume discounts

Quantity Discount You Save
10 1% Up to £2.70
20 2% Up to £10.80
50 3% Up to £40.50
100 4% Up to £108.00
200 5% Up to £270.00
Quantity

- 0-10V dimmable
- Constant voltage design 12Vdc
- Protections: Short circuit/ Overload/ Over voltage
- Built-in PFC function (PFC>0.95)



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Model: ELED-45-12V
Output DC voltage: 12V
Output current: 0-3.75A
Voltage accuracy: ±0.5V
Rated power: 45W
Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF ≥ 0.95/120V; PF ≥ 0.90/220V; PF ≥ 0.90/265V
Full Load Efficiency(Typ.): >81%
Protections: Short circuit/ Overload/ Over voltage
Working TEMP.: -30~+45°C
Working Humidity: 5~95%RH,non-condensing
Isolation Voltage: In/ Out 3000VAC
Vibration: 5-55Hz/ 2g, 30minutes
EMI: EN55022, EN55015 Class B
Safety: EN60598
Electromagnetic Immunity: EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11
Harmonic Current Emissions: EN61000-3-2, EN61000-3-3
Dimensions: 180x 60x 35mm (L*W*H)
Packing: 0.45Kg

ELED-45-12V
100 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP66
Output
12VDC
Wattage
45W
Dimming Control
0/1-10V/PWM/resistance
Design
Plastic case
Power factor correction (PFC)
Built-in active PFC function
