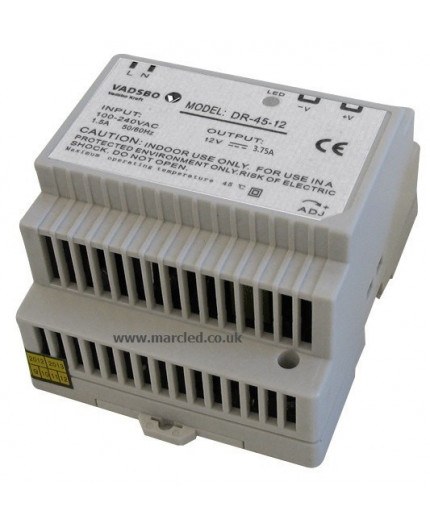

45W 12VDC Switching Power Supply for DIN Rail Mounting

21.00 VAT excl.
£25.20 VAT incl.

45W 12VDC Switching Power Supply for DIN Rail Mounting.
Built-in protection against short circuiting, overload, over-voltage with automatic reset when error is corrected.
Self-cooled.

1 Item
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Switching Power Supply for DIN Rail Mounting 45W 12VDC

Part Number: DR45/12
Protection against:
-short circuit
-overload
-over voltage
-automatic return
Cooling: natural
Mounting: DIN rail TS-35/7.5 & TS-35/15
Insulation class:II
LED indicator of power supply
Standard: EN 55, 61, 50, 60, UL60950
Input voltage: 100-240VAC
Output voltage: 12VDC
Voltage tolerance: +-1%
Rated current: 3.5A
Rated power: 45W
Max ripple: 200 mV p-p
DC adjustment: +-10%
Efficiency: 77%
Overload capacity: 5%
Insulation level: 3kVAC
Working temp.: -10*C-+45*C
Dimensions(without DIN mount): 78x93x56mm
Weight: 230g
Modules: 5

Application
Obvious areas include all types of operating equipment.
DR power supplies also specially suitable to drive LED stripes. To dim stripes, use LED dimmer.

DR45/12
1 Item

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP20 (non-waterproof)
Output
12VDC
Wattage
45W
Dimming Control
Non-dimmable
Design
DIN Rail
