1m / 1000mm O2 bendable / flexible aluminium LED profile, easy to bend (no tooling required)
  • 1m / 1000mm O2 bendable / flexible aluminium LED profile, easy to bend (no tooling required)
  • 02 1m / 1000mm bendable aluminium LED profile, easy bend, no tooling required

1m / 1000mm O2 bendable / flexible aluminium LED profile, easy to bend (no tooling required)

£11.94
VAT included

£9.95 VAT excluded

Quantity

LED aluminium profile, easy bend and installation - model O2 (slim, surface mount);
- anodized, silver;
- set with opal diffuser/cover and end caps (pair)

  • You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us. You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
  • Orders over £500 (excl. VAT)
Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method. Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
  • You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer). You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

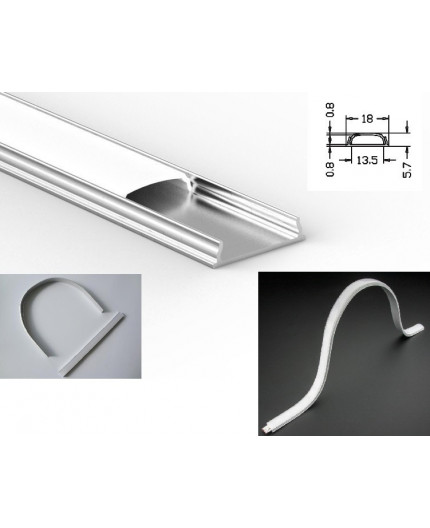

The extrusion O2 is made from high quality Aviation 6063-T5 aluminum alloy with Double-Anodized, and is designed for flexible LED strips that are 8 - 12mm wide. Covers (shade and protect LEDs inside the profile) are made of polycarbonate and are certified for excellent resistance to all weather conditions and UV radiation, as well as being flame retardant. Standard polypropylene end caps and mounting brackets (made from steel with zinc) are used for the extrusion as supplementary accessories. The extrusion can be mounted to surfaces with the use of double-sided adhesive tape or mounting brackets. The mounting bracket guarantees easy and secure mounting of the extrusion to a desired surface. It can also be used as a connector between extrusions.

Ingress Protection Rating: IP20 (standard)
Available lengths: 1.0m
Material: Body – aluminum, cover – polycarbonate (PC), end cap – polypropylene (PP)
Lighting Transmittance: Opal
Operating temperature range: -30~+100℃
Flammability: V2 Fire Rating for PC Cover.
UV stability: Ageing resistance
Heat stability: Under 100℃.
UL94 rating: UL94V2
Manufacturing tolerances: ±0.5mm.
Grade of aluminum: 6063-T5
Grade/Type of anodizing: Ecru oxidation and Grind arenaceous oxidation
Heat transmission properties: Aluminum specific heat is 0.88x10J/(Kg x ℃)
Max bend radius: 150mm


Set includes: anodized silver aluminium extrusion, opal cover and two end caps

Note: LED strip is not included

ML-O2SM-1
983 Items
2014-09-07

Data sheet

Length
1.0m / 1000mm
Finish
Silver anodized
Inner width
11-21mm
Method of installation
Surface mounted
